DC Motors |
|
|
|
| |
|
 Data Group: 271
SKU: 1111050
Weight (Kg): 0.5000

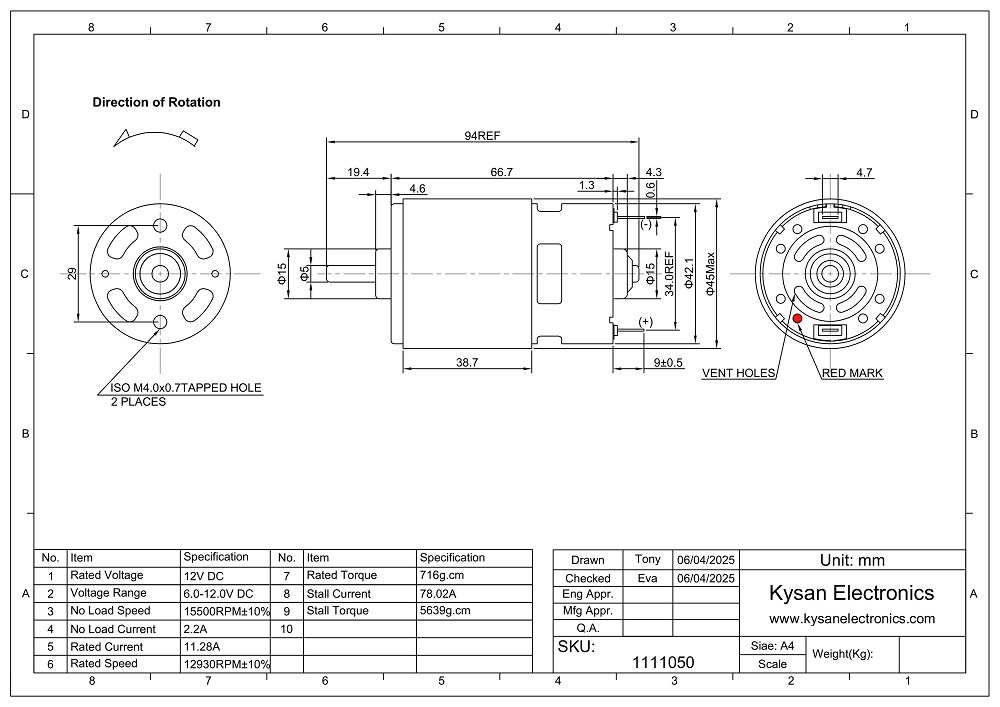

Decsription: RS-775SH-7013
HS Code: 8501.31.6000
Applications: Cordless Power Tools> Drill / Cordless Garden Tool / Circular Saw
Office Automation Equipment> Prin
 |
|
|
|
|
| |
Untitled Document
MFG Model |
VOLTAGE |
NO? LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
EFF |
CURRENT |
TORQUE |
V |
V |
RPM |
A |
RPM |
A |
g.cm |
mN.m |
W |
% |
A |
g-cm |
mN-m |
| RS-775SH-7013 |
6.0-12.0 |
12 |
15500 |
2.20 |
12930 |
11.28 |
716 |
70.2 |
95.13 |
70.7 |
78.02 |
5639 |
552.8 |
| RS-775SH-5028 |
12.0-24.0 |
12 |
7180 |
1.20 |
5800 |
4.91 |
669 |
65.6 |
39.9 |
67.5 |
26.18 |
4119 |
403.8 |
| RS-775SH-5036 |
7.0-13..0 |
12 |
6200 |
0.70 |
4810 |
4.90 |
800 |
78.5 |
39.47 |
66.45 |
23 |
4000 |
392 |
| RS-775SH-3070 |
12.0-36.0 |
24 |
5650 |
0.40 |
4860 |
1.56 |
512 |
50.2 |
25.6 |
69.3 |
9.29 |
3518 |
344.9 |
| RS-775SH-2885 |
12.0-36.0 |
24 |
4700 |
0.35 |
3850 |
1.26 |
491 |
48.1 |
19.42 |
63.8 |
6.31 |
2980 |
292 |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
