Stepper Motors


Data Group: 1520
SKU: 1122002
Weight (Kg): 1.0000

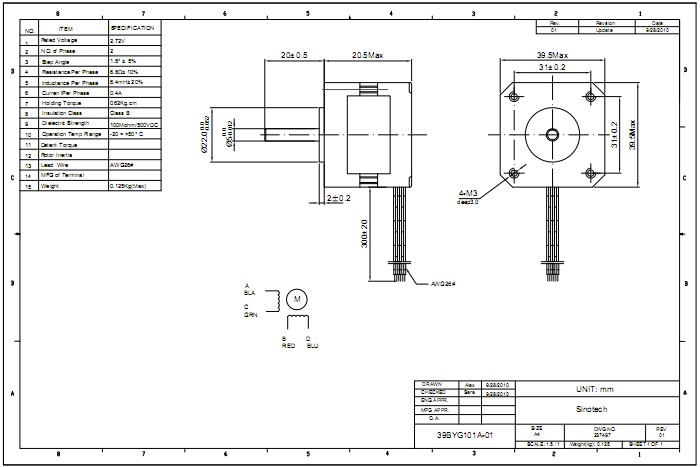

Decsription: 39BYG101A-01
HS Code: 8483.40.9000
Applications: Office Automation, banking equipment, Automobil control unit, telecom, home appliance


  无标题文档
KYSAN SKU MFG Model Step angle No. of Phase Voltage (V) Current (A) Resistance (O) Inductance (mH) Holding Torque (kg.cm) Weight (Kg)
1122002 39BYG101A-01 1.8° 2 2.72 0.4 6.8±10% 6.4±20% 0.62 0.125
