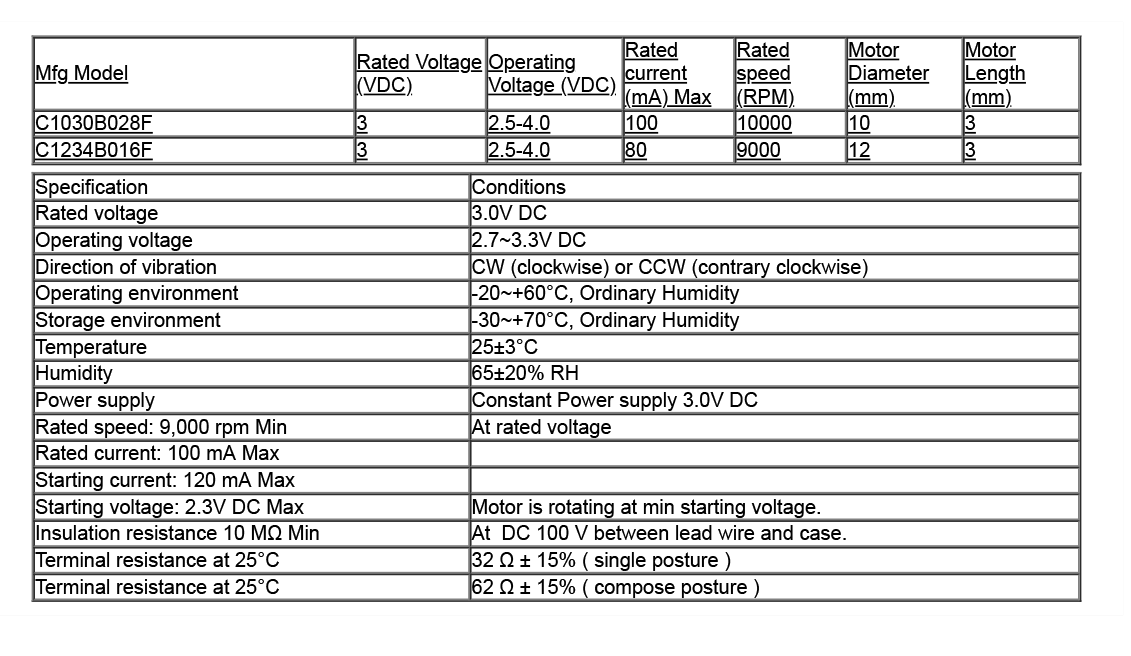

| Specification |
Conditions |
| Rated voltage |
3.0V DC |
| Operating voltage |
2.7~3.3V DC |
| Direction of vibration |
CW (clockwise) or CCW (contrary clockwise) |
| Operating environment |
-20~+60°C, Ordinary Humidity |
| Storage environment |
-30~+70°C, Ordinary Humidity |
| Temperature |
25±3°C |
| Humidity |
65±20% RH |
| Power supply |
Constant Power supply 3.0V DC |
| Rated speed: 9,000 rpm Min |
At rated voltage |
| Rated current: 100 mA Max |
|
| Starting current: 120 mA Max |
|
| Starting voltage: 2.3V DC Max |
Motor is rotating at min starting voltage. |
| Insulation resistance 10 MΩ Min |
At DC 100 V between lead wire and case. |
| Terminal resistance at 25°C |
32 Ω ± 15% ( single posture ) |
| Terminal resistance at 25°C |
62 Ω ± 15% ( compose posture ) |
Data Group: 986
