Stepper Motors
Data Group: 1362
SKU: 1124064
Weight (Kg): 1.0000
Decsription: 42BYG58B-18W6
HS Code: 8501.10.4040
Applications: Office Automation, banking equipment, Automobil control unit, telecom, home appliance
Untitled Document
MFG Model
No. of Phase
Step Angle
Voltage Phase (V)
Current Phase (A)
Resistance Phase (O)
Inductance Phase (mH)
Holding Torque (Kg.cm)
Detent Torque (g.cm)
Weight (Kg)
Size (mm)
Wire Connect.
L0
L1

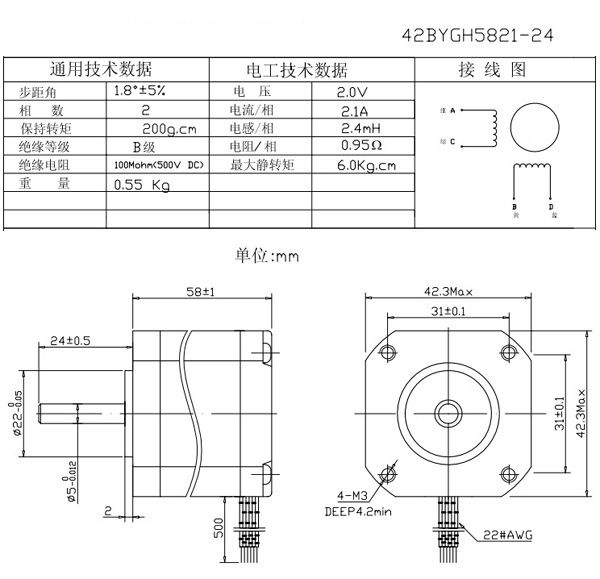

42BYGH5821-24
2
1.8
2
2.1
0.95
2.4
6
0.55
58
24
WDG. A
17HD403N-1
2
1.8
3
1.5
2
3.85
5
200
0.38
48
24
WDG. A
42BYGH900-01
2
1.8
5.4
1.2
4
7.7
6.8
0.45
60
12.5
WDG. A
