Brushless Motors

Data Group: 1869
SKU: 1025211
Weight (Kg): 0.2000
Decsription: TEC-3625-24V5000RPM
HS Code: 8483.40.9000
Applications: Medical equipment

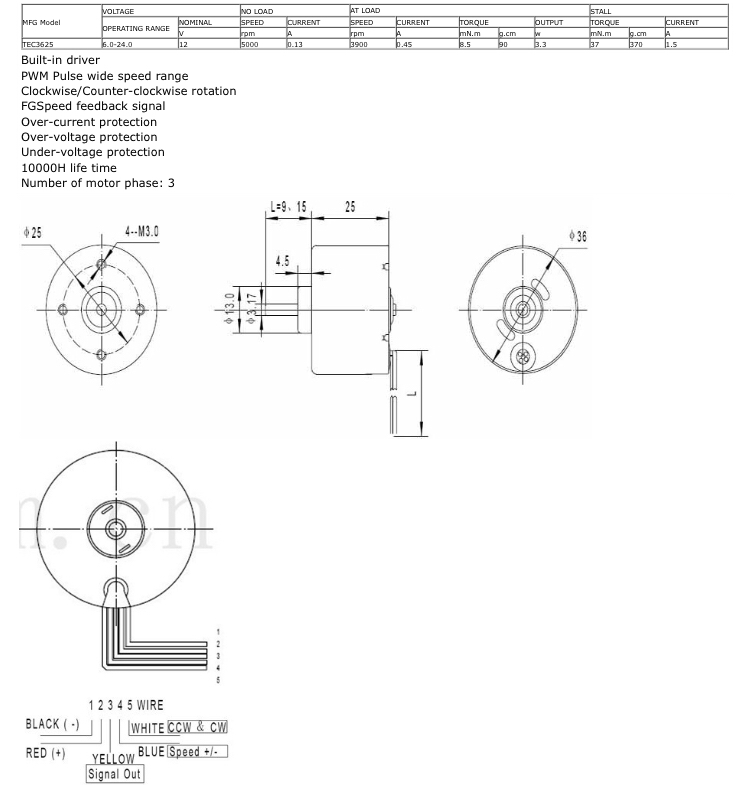

MFG Model VOLTAGE NO LOAD AT LOAD  STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A mN.m g.cm w mN.m g.cm A
TEC3625 6.0-24.0 12 5000 0.13 3900 0.45 8.5 90 3.3 37 370 1.5
Untitled Document Built-in driver
PWM Pulse wide speed range
Clockwise/Counter-clockwise rotation
FGSpeed feedback signal
Over-current protection
Over-voltage protection
Under-voltage protection
10000H life time
Number of motor phase: 3
