Stepper Motors
1879 Active
Data Group: 1879
SKU: 1040284
Weight (Kg): 0.5000
Decsription: 11HY105-31.75
HS Code: 8483.40.9000
Applications: Medical equipment
MFG Model
Step Angle
Phase
Resolution
Rated Current
Resistance
Inductance
Detent Torque

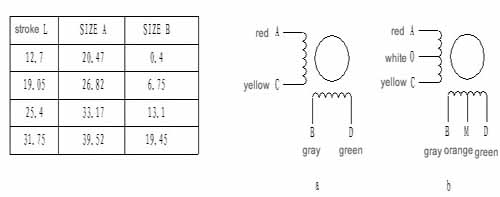

Wiring
Rotor Inertia
Weight
Degree
Number
mm
A
Ohm
mH
mN.m
Diagram
g.cm²
Kg
11HY104-LxD
1.8
4
0.003175
0.4
7
2.4
4
B
9
0.15
11HY105-LxD
1.8
2
0.003175
0.42
11.9
5
4
A
9
0.15
11HY106-LxD
1.8
4
0.003175
1.5
0.7
0.12
4
B
9
0.15
