AC Motors

Data Group: 1968
SKU: 70888
Weight (Kg): 3.0000
Decsription: 60YN06-110V200RPM
HS Code: 8501.31.4000
Applications: Instrument

无标题文档

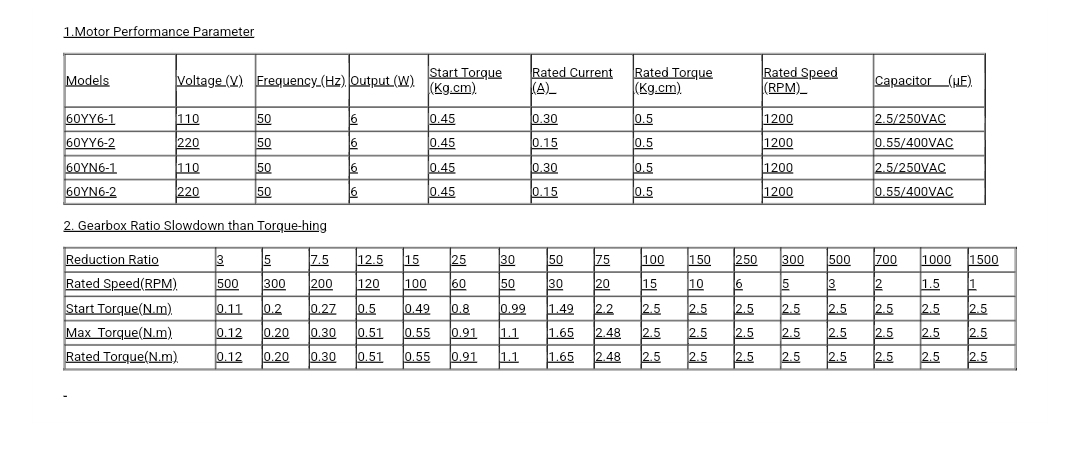

1.Motor Performance Parameter

Models Voltage (V) Frequency (Hz) Output (W) Start Torque (Kg.cm) Rated Current (A)   Rated Torque (Kg.cm) Rated Speed (RPM)   Capacitor     (μF)
60YY6-1 110 50 6 0.45 0.30 0.5 1200 2.5/250VAC
60YY6-2 220 50 6 0.45 0.15 0.5 1200 0.55/400VAC
60YN6-1 110 50 6 0.45 0.30 0.5 1200 2.5/250VAC
60YN6-2 220 50 6 0.45 0.15 0.5 1200 0.55/400VAC

2. Gearbox Ratio Slowdown than Torque-hing

Reduction Ratio 3 5 7.5 12.5 15 25 30 50 75 100 150 250 300 500 700 1000 1500
Rated Speed(RPM) 500 300 200 120 100 60 50 30 20 15 10 6 5 3 2 1.5 1
Start Torque(N.m) 0.11 0.2 0.27 0.5 0.49 0.8 0.99 1.49 2.2 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Max  Torque(N.m) 0.12 0.20 0.30 0.51 0.55 0.91 1.1 1.65 2.48 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Rated Torque(N.m) 0.12 0.20 0.30 0.51 0.55 0.91 1.1 1.65 2.48 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
