AC Motors

Data Group: 662
SKU: 16001
Weight (Kg): 0.5000
Decsription: 64TYD-220V152RPM
HS Code: 8501.31.4000
Applications: Household Electrical Appliances / Laminator / Auto Control Machine / Spotlight.

Untitled Document

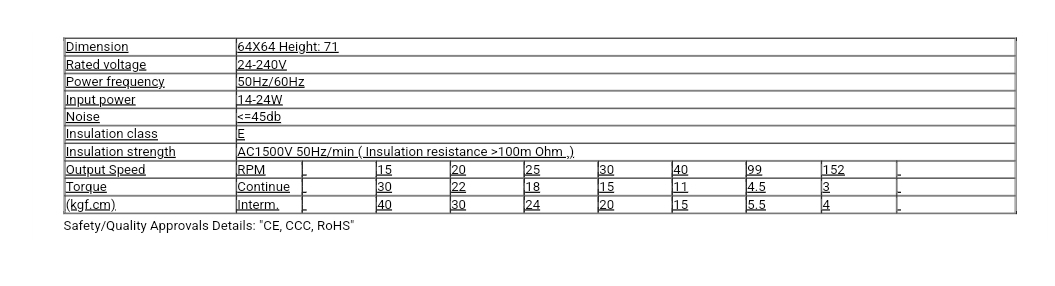

Dimension 64X64 Height: 71
Rated voltage 24-240V
Power frequency 50Hz/60Hz
Input power 14-24W
Noise <=45db
Insulation class E
Insulation strength AC1500V 50Hz/min ( Insulation resistance >100m Ohm )
Output Speed RPM 15 20 25 30 40 99 152
Torque Continue 30 22 18 15 11 4.5 3
(kgf.cm) Interm. 40 30 24 20 15 5.5 4
Safety/Quality Approvals Details: "CE, CCC, RoHS"
