DC Motors


Data Group: 410
SKU: 1111079
Weight (Kg): 0.2000

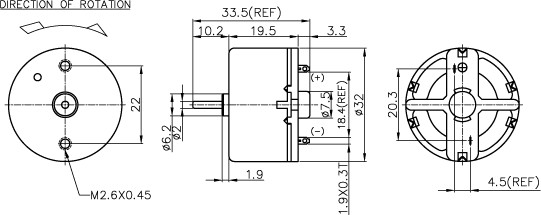

Decsription: RF-500TB-18280-R32
HS Code: 8501.31.6000
Applications: Audio and Visual Equipment>CD Player,DVD Player,VCR



MFG Model: RF-500TB-18280-R/32
Voltage): 6.0 VDC
Rated Power Output): 0.90 W
Ambient Temperature: 25 Degree C
No-Load R.P.M: 5600
No-Load Current: 70 mA
Started Torque: 122 g-cm
Description R.P.M. Amps Grcm Eff(%) Output Watts Input Watts
Locked Rotor 0 1.267 122.686 0 0.0000 7.422
(Max-Torque 0 1.267 122.686 0 0.0000 7.4222
Max-Efficiency 4701 0.232 18.74 68 0.9050 1.335
Maximum Output 2794 0.659 61.565 46 1.7670 3.858
Volt Amp Eff(%) W(out) kRPM
0 0 0 0 0
0.7 0.15 10 0.2
0.6
 RPM ? ? ? ? ? ? ? ? ?
1.4 0.3 20 0.4 1.2 Volt ? ? W Output ? ? ? ? ? AMP
2.1 0.45 30 0.6 1.8 ? ? ? ? ? ? ? ? ? ?
2.8 0.6 40 0.8 2.4 ? EFF % ? ? ? ? ? ? ? ?
3.5 0.75 50 1 3 ? ? ? ? ? ? ? ? ? ?
4.2 0.9 60 1.2 3.6 ? ? ? ? ? ? ? ? ? ?
4.9 1.05 70 1.4 4.2 ? ? ? ? ? ? ? ? ? ?
5.6 1.2 80 1.6 4.8 ? ? ? ? ? ? ? ? ? ?
6.3 1.35 90 1.8 5.4 ? ? ? ? ? ? ? ? ? ?
7 1.5 100 2 6 ? ? ? ? ? ? ? ? ? ?
0 26 52 78 104 130
Grcm
Torque Constant: 100.3515
Motor Constant: 37.1150
