Stepper Motors |
|
|
|
| |
|
 Data Group: 426
SKU: 1040010
Weight (Kg): 2.0000

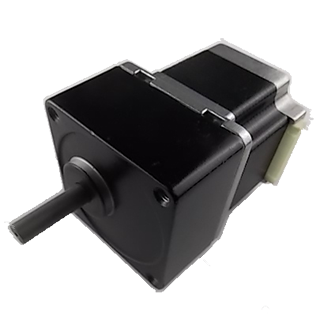

Decsription: 23HD203C20i
HS Code: 8501.10.4040
Applications: Office equipment, automotion, auto control unit, telecommunication, home appliances, stage lights
 |
|
|
|
|
| |
| Kysan SKU |
MFG MODEL |
Description 1 |
Description 2 |
| 1040028 |
23HD034C500i |
MOTOR,STEP,NEMA 23,GEAR RATIO 500:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040027 |
23HD034C400i |
MOTOR,STEP,NEMA 23,GEAR RATIO 400:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040026 |
23HD034C375i |
MOTOR,STEP,NEMA 23,GEAR RATIO 375:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040025 |
23HD034C300i |
MOTOR,STEP,NEMA 23,GEAR RATIO 300:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040024 |
23HD034C225i |
MOTOR,STEP,NEMA 23,GEAR RATIO 225:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040023 |
23HD034C200i |
MOTOR,STEP,NEMA 23,GEAR RATIO 200:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040022 |
23HD034C180i |
MOTOR,STEP,NEMA 23,GEAR RATIO 180:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040021 |
23HD034C150i |
MOTOR,STEP,NEMA 23,GEAR RATIO 150:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040020 |
23HD034C125i |
MOTOR,STEP,NEMA 23,GEAR RATIO 125:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040019 |
23HD034C100i |
MOTOR,STEP,NEMA 23,GEAR RATIO 100:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040018 |
23HD034C80i |
MOTOR,STEP,NEMA 23,GEAR RATIO 80:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040017 |
23HD034C75i |
MOTOR,STEP,NEMA 23,GEAR RATIO 75:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040016 |
23HD034C60i |
MOTOR,STEP,NEMA 23,GEAR RATIO 60:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040015 |
23HD034C50i |
MOTOR,STEP,NEMA 23,GEAR RATIO 50:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040014 |
23HD034C30i |
MOTOR,STEP,NEMA 23,GEAR RATIO 30:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040013 |
23HD034C25i |
MOTOR,STEP,NEMA 23,GEAR RATIO 25:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040012 |
23HD034C20i |
MOTOR,STEP,NEMA 23,GEAR RATIO 20:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040011 |
23HD034C16i |
MOTOR,STEP,NEMA 23,GEAR RATIO 16:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040010 |
23HD034C13i |
MOTOR,STEP,NEMA 23,GEAR RATIO 13:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040009 |
23HD034C12i |
MOTOR,STEP,NEMA 23,GEAR RATIO 12:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| 1040008 |
23HD034C10i |
MOTOR,STEP,NEMA 23,GEAR RATIO 10:1 |
1.8/0.9 DEGREE,BIPOLAR/UNIPOLAR |
| |
