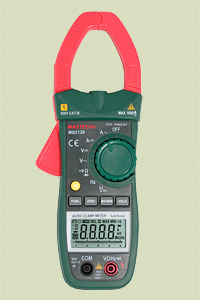

| FEATURES |
| • |
Conform to the IEC1010-1 & IEC1010-1-032 standard |
| • |
Double insulation (protection class 600V CAT III and pollution degree 2) |
| • |
Display: 3999 counts and 42 segments bar graph |
| • |
Auto/Manual range |
| • |
Auto zero key for DCA |
| • |
Data hold function |
| • |
MAX/MIN function |
| • |
Back light function |
| • |
Jaw lighting |
| • |
Auto power off |
| • |
DCV: 4/40/400V±0.8%, 1000V±1.0% |
| • |
ACV: 4/40/400V±1.0%, 700V±1.2% |
| • |
DCA: 400/1000A±3.0% |
| • |
ACA: 400/1000A<600A±2.5%, ≥600A±3.0% |
| • |
Resistance: 400/4k/40k/400k/4MΩ±1.0%, 40MΩ±2.0% |
| • |
Continuity test |
| • |
Diode test |
| • |
Frequency: 40Hz to 100kHz±0.1% (from test terminal), 40Hz to 400Hz±0.1% (from current clamp) |
| • |
MAX. diameter for conductor: Ф42mm |
| • |
Secondary injection molding case |
| • |
SMT application |
| • |
Dimension: 225mm x 86mm x 33mm |
| • |
Power: 1.5V (AAA) x 3 |
| • |
Weight: 320g |
