DC Motors |
|
|
|
| |
|
 Data Group: 554
SKU: 1112144
Weight (Kg): 0.1000
Decsription: FC-280SC-20150
HS Code: 8501.31.6000
Applications: Automotive products: retractable rearview mirror, door lock actuator (Lexus),and steering Lock
 |
|
|
|
|
| |
Untitled Document
MFG MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
RANGE |
VDC |
RPM |
A |
RPM |
A |
mN-m |
g-cm |
W |
mN-m |
g-cm |
A |

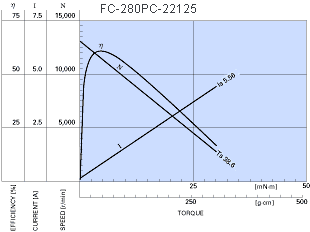

| FC-280PC-22125 |
8.0-15 |
12 |
13100 |
0.11 |
11480 |
0.78 |
4.76 |
49 |
5.71 |
38.6 |
393 |
5.56 |
| FC-280SC-20150 |
8.0-15 |
12 |
11800 |
0.081 |
10310 |
0.56 |
4.14 |
42 |
4.47 |
32.9 |
335 |
3.9 |
| FC-280SC-18180 |
8.0-15 |
12 |
9700 |
0.16 |
7880 |
0.69 |
5.33 |
54 |
4.39 |
28.4 |
290 |
3 |
| FC-280SC-16220 |
9.0-14 |
12 |
7900 |
0.055 |
6780 |
0.33 |
3.27 |
33 |
2.32 |
23 |
234 |
2 |
|
|
| |

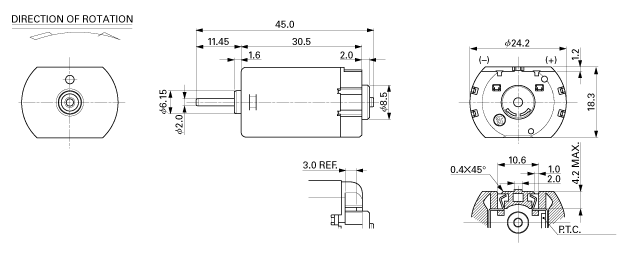

Internal connectors on the endbell |
|
| |
|
|
| |
|
|
| |
|
|
| |
