DC Motors


Data Group: 1630
SKU: 1112161
Weight (Kg): 0.2000
Decsription: RK-370SD-5028
HS Code: 8483.40.9000
Applications: Office equipment


  无标题文档

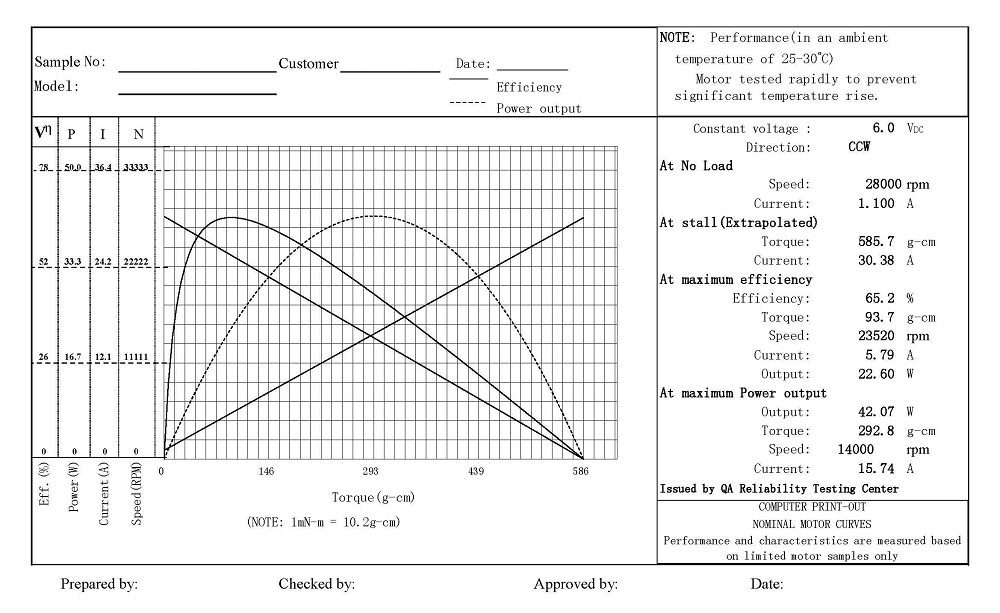

MFG Model VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
RANGE VDC RPM A RPM A mN·m g·cm W mN·m g·cm A
RK-370SD-5028 3 - 6 6 28000 0.85 23851 4.89 9.35 93.5 20 63.13 631.3 28.08

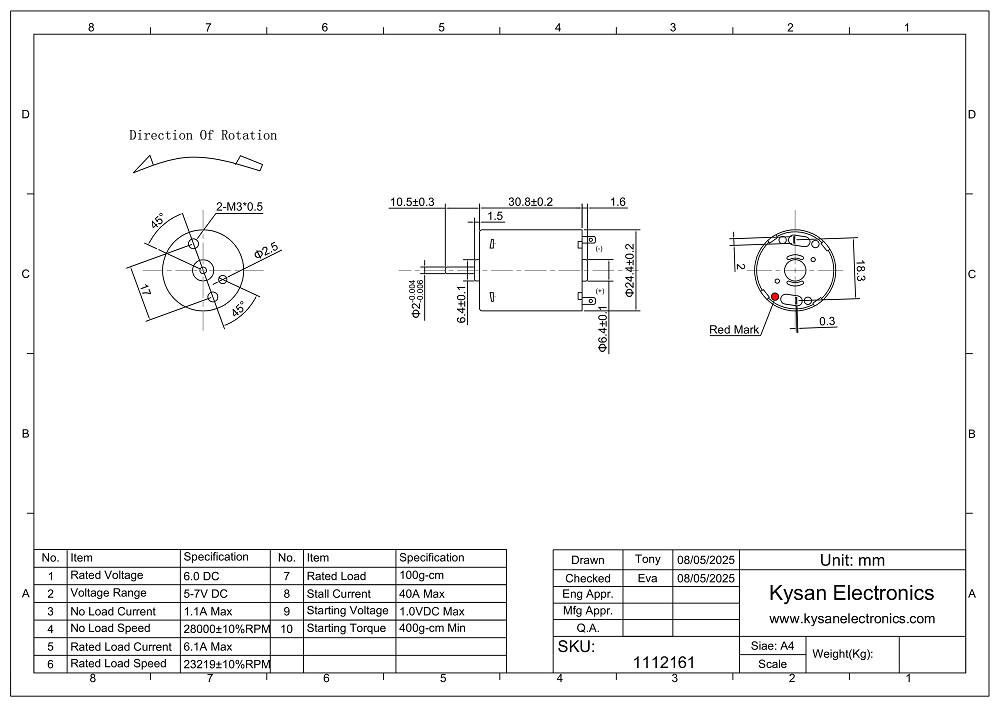

Diameter of magnet wire= 0.5mm Number of turns of armature winding per slot = 28 turns The Shaft is 2mm knurl shaft Note I need Ball-bearing or oil bearing but sintetic materials and not Brass

It's 6V load voltage but I don't know this parameter, I use a Mabuchi RK-370-SD-5028 , I have disassembly this motor and the Diameter of magnet wire= 0.5mm Number of turns of armature winding per slot = 28 turns and the Shaft is 2mm knurl shaft
