Stepper Motors |
|
|
|
| |
|
 Data Group: 527
SKU: 1138005
Weight (Kg): 0.2000
Decsription: 28BYJ48-12V
HS Code: 8501.10.4040
Applications: Mainly used in Air Conditioner Louver , Small Cooling/Heating Fan
 |
|
|
|
|
| |
Manufacturer |
Phase |
Voltage |
Current |
Resistance |
Step Angle |
Gear |
No load |
Detent
|
Detent Torque |
Holding Torque |
Wdg. |

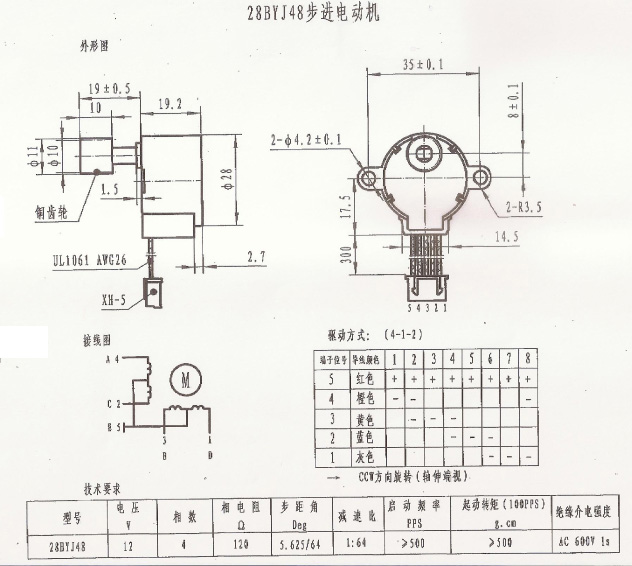

Drawing |
Model |
Number |
VDC |
(mA) |
(Ohms) |
Degree |
Ratio |
PPS |
PPS |
(g.cm) |
(g.cm) |
Figure |
Figure |
| 28BYJ01A |
4
|
12 |
60 |
200 |
5.625/64 |
1/64 |
1000 |
600 |
400 |
350 |
a |
1 |
| 28BYJ01A1 |
4 |
12 |
40 |
300 |
5.625/64 |
1/64 |
900 |
550 |
300 |
300 |
a |
2 |
| 28BYJ01C |
4 |
12 |
40 |
300 |
5.625/64 |
1/64 |
900 |
550 |
300 |
350 |
a |
3 |
| 28BYJ012A |
4 |
12 |
60 |
200 |
5.625/64 |
1/64 |
1000 |
600 |
400 |
350 |
a |
1 |
| |
