Stepper Motors


Data Group: 526
SKU: 1131005
Weight (Kg): 0.3000

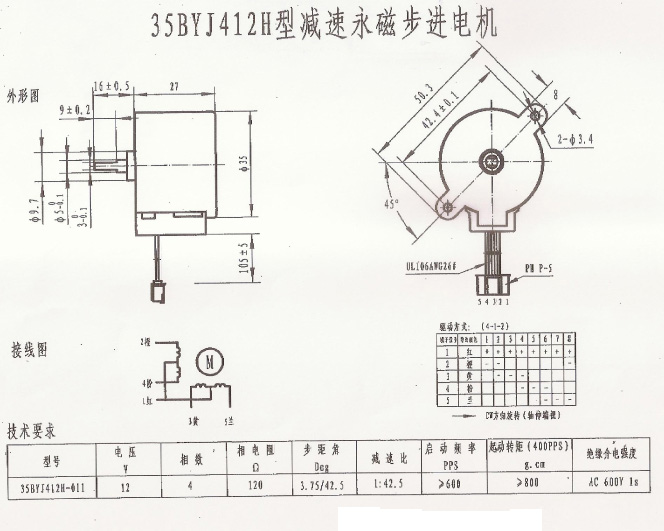

Decsription: 35BYJ-R42.5/1
HS Code: 8501.10.4040
Applications: Mainly used in Air Conditioner Louver , Small Cooling/Heating Fan.



Manufacturer
Phase
Voltage
Current
Resistance
Step Angle
Gear
No load

Detent
Detent Torque
Holding Torque
Wdg.
 Drawing
Model
Number
VDC
(mA)
(Ohms)
Degree
Ratio
 PPS PPS
(g.cm)
(g.cm)
Figure
 Figure
28BYJ01A

4

 12 60 200 5.625/64 1/64 1000 600 400 350
a
1
28BYJ01A1 4 12 40 300 5.625/64 1/64 900 550 300 300
a
2
28BYJ01C 4 12 40 300 5.625/64 1/64 900 550 300 350
a
3
28BYJ012A 4 12 60 200 5.625/64 1/64 1000 600 400 350
a
1
30BYJ011 4 12 40 300 7.5/85.25 1/85.25 800 450 350 350
b
4
30BYJ01C1 4 12 40 300 7.5/85.25 1/85.25 800 450 350 350
b
5
30BYJ02AH 4 12 60 200 7.5/85.25 1/85.25 900 500 400 350
a
6
30BYJ03C 4 12 75 160 7.5/85.25 1/85.25 1000 600 500 400
a
7
30BYJ05-PH 4 12 40

300

 7.5/85.25 1/85.25 800 500 300 350
c
8
35BYJ01 4 12 92 130 7.5/85.25 1/85.25 800 305 800 350
a
9
35BYJ02 4 12 60 200 7.5/85.25 1/85.25 800 305 600 400
a
10
35BYJ02A 4 12 60 200 7.5/85.25 1/85.25 800 305 600 400
a
11
35BYJ03 4 12 40 400 7.5/85.25 1/85.25 800 305 450 450
a
10
35BYJ46A 4 12 60 200 7.5/85.25 1/85.25 800 350 600

400
d
12
