Stepper Motors


Data Group: 686
SKU: 1123028
Weight (Kg): 1.0000
Decsription: 42BYG38U-18T2
HS Code: 8501.10.4040
Applications: Pump


  Untitled Document
Kysan Mfg Number Rated Rated Resistance Inductance Hoding Detent Rotor Weight
SKU Product of Voltage Current Per phase Per phase Torue Torue Inertia
Number Model Phase (VDC) (A) (Ohms) (mH) (Ohms) (Ohms) (g.cm2) (g)
1123028 42BYG228-A 4 12 0.4 30±10% 20±20% 260 15 54 230

  MOTOR,STEP,UNIPOLAR,12V,0.4A,30OHM,22MH
1.8 DEGREE,2.0KG-CM MAX,20G.CM2,4-PHASE
1346458+1326140

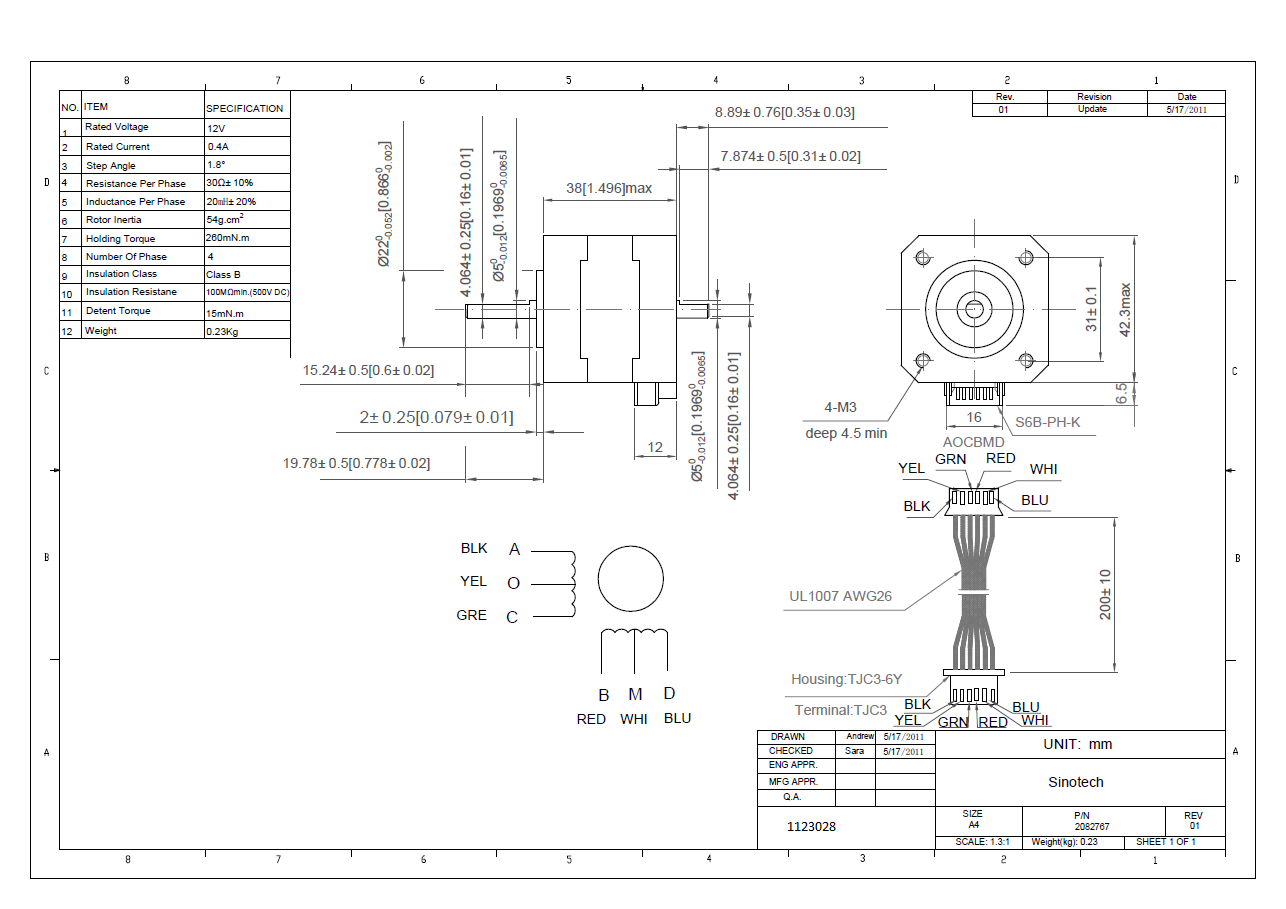

Cable connection:
1-Blue
2-White
3-Red
4-Green
5-Yellow
6-Black
