AC Motors

Data Group: 1124
SKU: 1311095
Weight (Kg): 3.0000
Decsription: 70JB12.5H
HS Code: 8483.40.9000
Applications: Household Electrical Appliances / Laminator / Auto Control Machine / Spotlight / ..etc.

Untitled Document

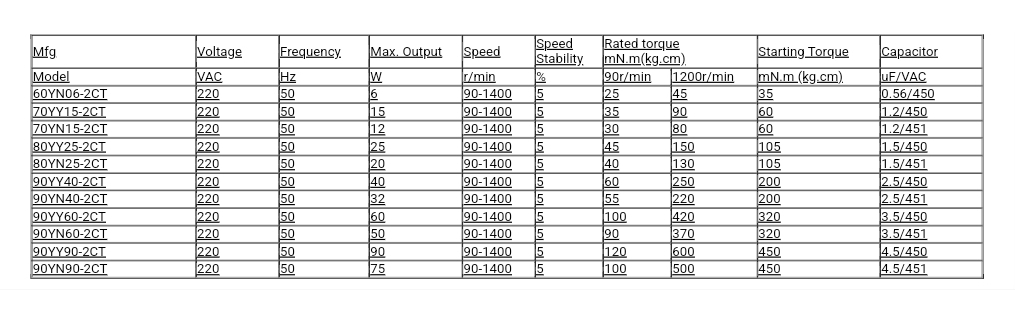

Mfg Voltage Frequency Max. Output Speed Speed Stability Rated torque mN.m(kg.cm) Starting Torque Capacitor
Model VAC Hz W r/min % 90r/min 1200r/min mN.m (kg.cm) uF/VAC
60YN06-2CT 220 50 6 90-1400 5 25 45 35 0.56/450
70YY15-2CT 220 50 15 90-1400 5 35 90 60 1.2/450
70YN15-2CT 220 50 12 90-1400 5 30 80 60 1.2/451
80YY25-2CT 220 50 25 90-1400 5 45 150 105 1.5/450
80YN25-2CT 220 50 20 90-1400 5 40 130 105 1.5/451
90YY40-2CT 220 50 40 90-1400 5 60 250 200 2.5/450
90YN40-2CT 220 50 32 90-1400 5 55 220 200 2.5/451
90YY60-2CT 220 50 60 90-1400 5 100 420 320 3.5/450
90YN60-2CT 220 50 50 90-1400 5 90 370 320 3.5/451
90YY90-2CT 220 50 90 90-1400 5 120 600 450 4.5/450
90YN90-2CT 220 50 75 90-1400 5 100 500 450 4.5/451
