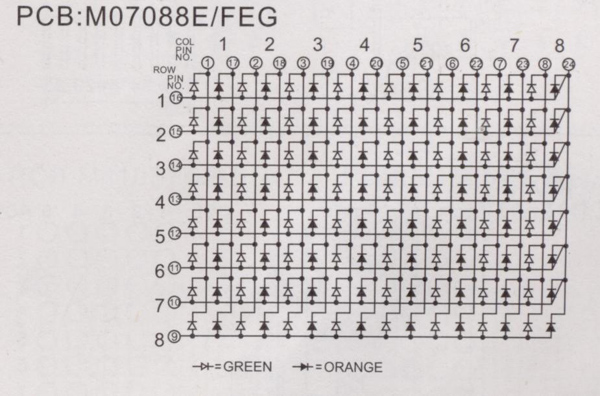

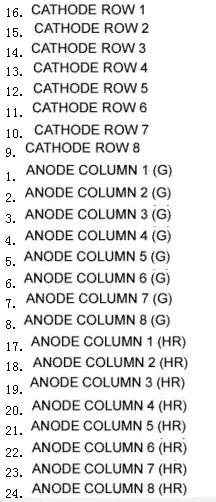

  • 型号( PART NO 。): 788ASRG
  • 说明( Description ):

发光颜色( Emitted Color ):红绿光

外观颜色( Lens Color ):黑、 白 色

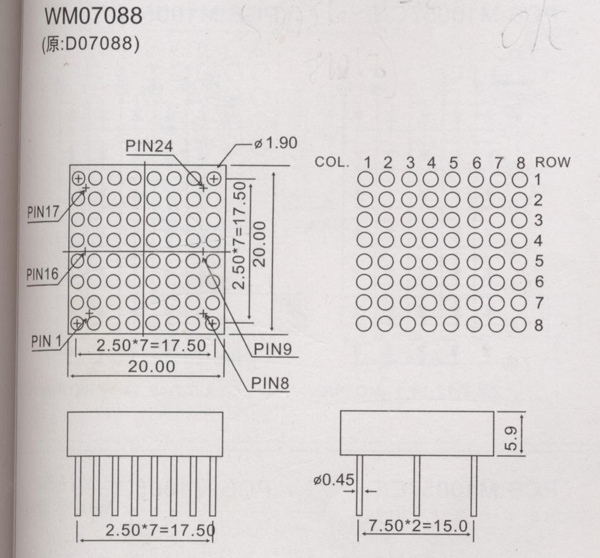

外形尺寸( Max Size ): 20*20*5.9

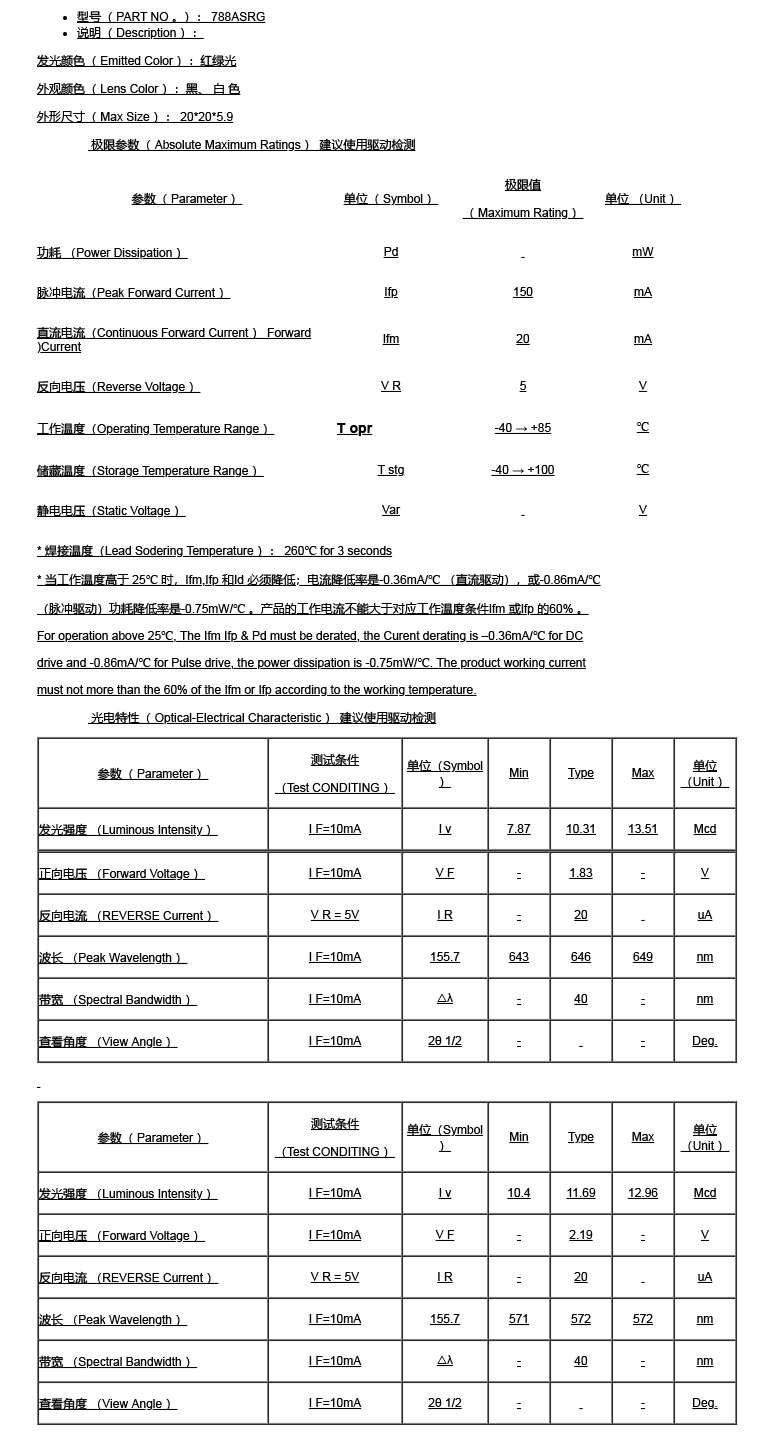

极限参数( Absolute Maximum Ratings ) 建议使用驱动检测

参数( Parameter )

单位( Symbol )

极限值

( Maximum Rating )

单位 (Unit )

功耗 (Power Dissipation )

Pd

mW

脉冲电流(Peak Forward Current )

Ifp

150

mA

直流电流(Continuous Forward Current ) Forward )Current

Ifm

20

mA

反向电压(Reverse Voltage )

V R

5

V

工作温度(Operating Temperature Range )

T opr

-40 → +85

储藏温度(Storage Temperature Range )

T stg

-40 → +100

静电电压(Static Voltage )

Var

V

* 焊接温度(Lead Sodering Temperature ): 260℃ for 3 seconds

* 当工作温度高于 25℃ 时,Ifm,Ifp 和Id 必须降低;电流降低率是-0.36mA/℃ (直流驱动),或-0.86mA/℃

(脉冲驱动)功耗降低率是-0.75mW/℃ 。产品的工作电流不能大于对应工作温度条件Ifm 或Ifp 的60% 。

For operation above 25℃, The Ifm Ifp & Pd must be derated, the Curent derating is 0.36mA/℃ for DC

drive and -0.86mA/℃ for Pulse drive, the power dissipation is -0.75mW/℃. The product working current

must not more than the 60% of the Ifm or Ifp according to the working temperature.

光电特性( Optical-Electrical Characteristic ) 建议使用驱动检测

参数( Parameter )

测试条件

(Test CONDITING )

单位(Symbol )

Min

Type

Max

单位 (Unit )

发光强度 (Luminous Intensity )

I F=10mA

I v

7.87

10.31

13.51

Mcd

正向电压 (Forward Voltage )

I F=10mA

V F

-

1.83

-

V

反向电流 (REVERSE Current )

V R = 5V

I R

-

20

uA

波长 (Peak Wavelength )

I F=10mA

155.7

643

646

649

nm

带宽 (Spectral Bandwidth )

I F=10mA

△λ

-

40

-

nm

查看角度 (View Angle )

I F=10mA

2θ 1/2

-

-

Deg.

参数( Parameter )

测试条件

(Test CONDITING )

单位(Symbol )

Min

Type

Max

单位 (Unit )

发光强度 (Luminous Intensity )

I F=10mA

I v

10.4

11.69

12.96

Mcd

正向电压 (Forward Voltage )

I F=10mA

V F

-

2.19

-

V

反向电流 (REVERSE Current )

V R = 5V

I R

-

20

uA

波长 (Peak Wavelength )

I F=10mA

155.7

571

572

572

nm

带宽 (Spectral Bandwidth )

I F=10mA

△λ

-

40

-

nm

查看角度 (View Angle )

I F=10mA

2θ 1/2

-

-

Deg.
