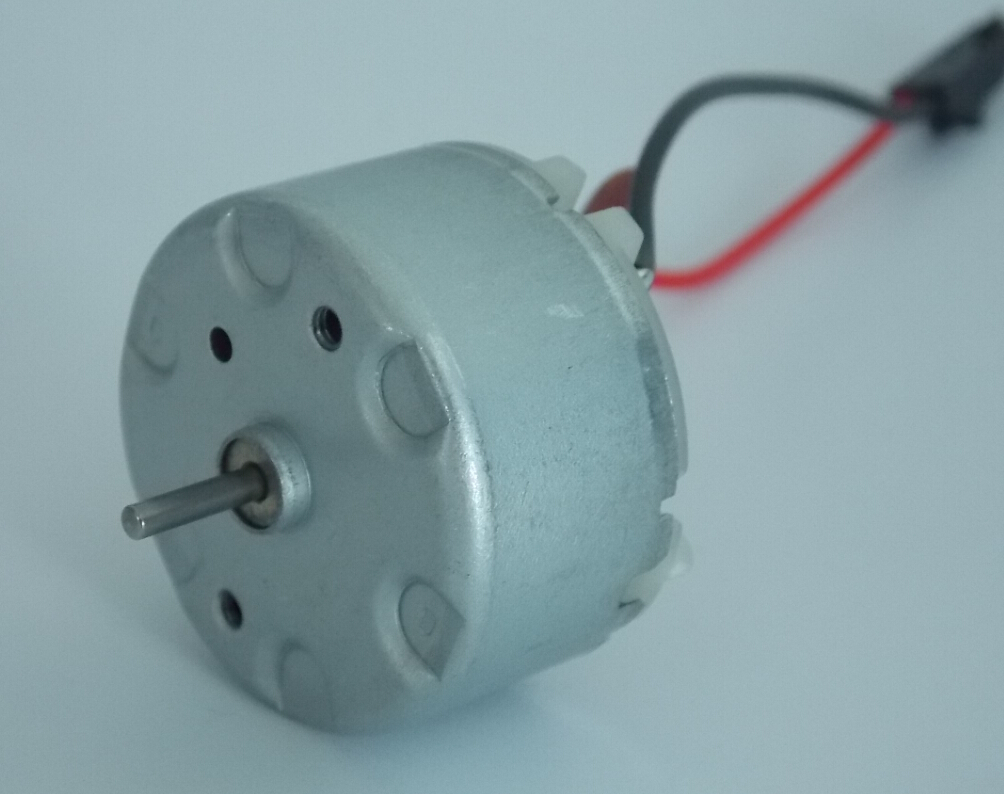

DC Motors


Data Group: 2626
SKU: 1112193
Weight (Kg): 0.1000

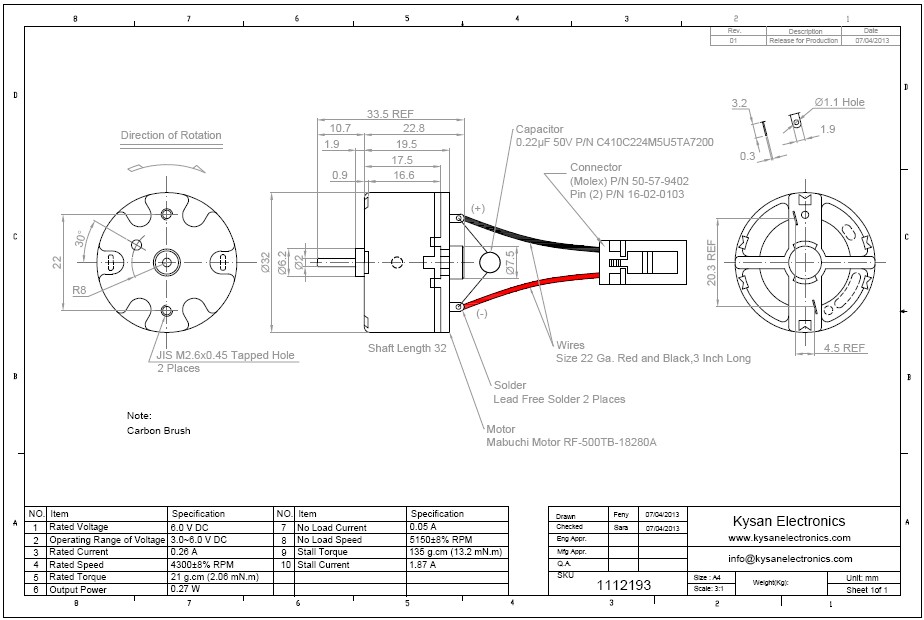

Decsription: RK-500TB-18280-A
HS Code: 8483.40.9000
Applications: Water pump



MFG MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
RANGE VDC RPM A RPM A mN-m g-cm W mN-m g-cm A
RF-500TB-18280-A 3.0-6.0 6 5150±8% 0.05 4300±8% 0.26 2.06 21 0.27 13.2 135 1.87

Life time of usage: 300-500 hours
Wires length 3"
Size 22 AWG Red and Black

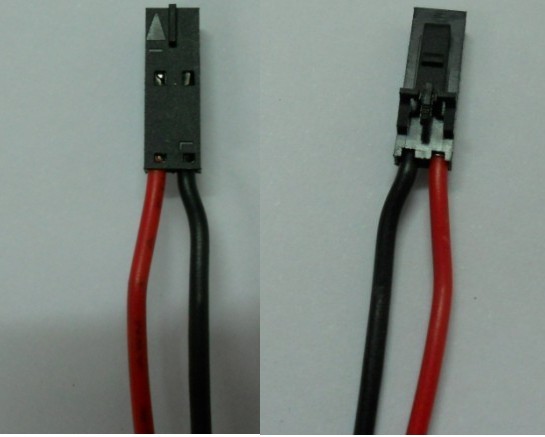

Connector housing (Molex) P/N 50-57-9402 (1pc) pins P/N16-02-0103 (2pc's)
0.22uF 50V P/N C410C224M5U5TA7200
Lead free solder

The shaft diameter tolerance of 1112193 is -0.003/+0.005.

Black wire connect to(+) terminal and red wire connect to (-) terminal. 8% speed tolerance only.

Carbon Brush
