AC Motors

Data Group: 863
SKU: 1150392
Weight (Kg): 3.0000
Decsription: 70YN15-220V15RPM
HS Code: 8483.40.9000
Applications: Gluing machine,monitor,electrical curtain,stage lights,advertisement electrical movement ,electrical apparatus and science and education instruments,automatic majiang platform.

Untitled Document

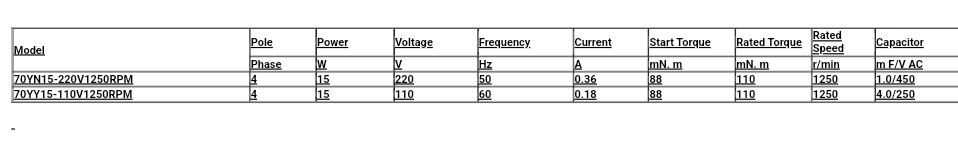

Model Pole Power Voltage Frequency Current Start Torque Rated Torque Rated Speed Capacitor
Phase W V Hz A mN. m mN. m r/min m F/V AC
70YN15-220V1250RPM 4 15 220 50 0.36 88 110 1250 1.0/450
70YY15-110V1250RPM 4 15 110 60 0.18 88 110 1250 4.0/250
