AC Motors

Data Group: 865
SKU: 1150402
Weight (Kg): 3.0000
Decsription: 90YN90-2
HS Code: 8483.40.9000
Applications: Gluing machine,monitor,electrical curtain,stage lights,advertisement electrical movement ,electrical apparatus and science and education instruments,automatic majiang platform.

Untitled Document

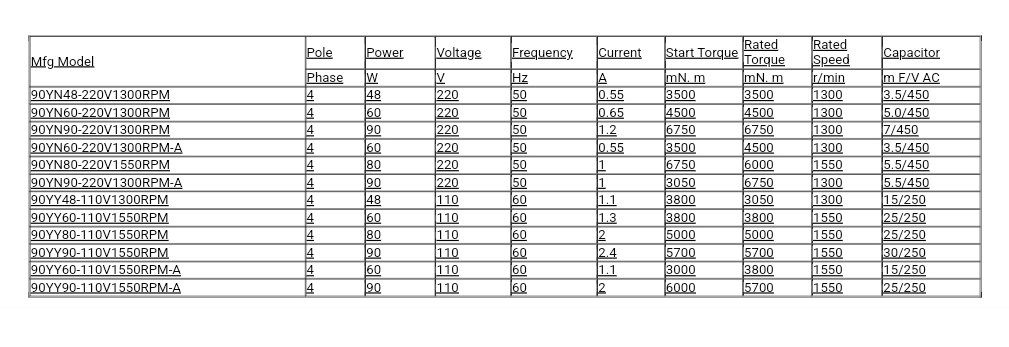

Mfg Model Pole Power Voltage Frequency Current Start Torque Rated Torque Rated Speed Capacitor
Phase W V Hz A mN. m mN. m r/min m F/V AC
90YN48-220V1300RPM 4 48 220 50 0.55 3500 3500 1300 3.5/450
90YN60-220V1300RPM 4 60 220 50 0.65 4500 4500 1300 5.0/450
90YN90-220V1300RPM 4 90 220 50 1.2 6750 6750 1300 7/450
90YN60-220V1300RPM-A 4 60 220 50 0.55 3500 4500 1300 3.5/450
90YN80-220V1550RPM 4 80 220 50 1 6750 6000 1550 5.5/450
90YN90-220V1300RPM-A 4 90 220 50 1 3050 6750 1300 5.5/450
90YY48-110V1300RPM 4 48 110 60 1.1 3800 3050 1300 15/250
90YY60-110V1550RPM 4 60 110 60 1.3 3800 3800 1550 25/250
90YY80-110V1550RPM 4 80 110 60 2 5000 5000 1550 25/250
90YY90-110V1550RPM 4 90 110 60 2.4 5700 5700 1550 30/250
90YY60-110V1550RPM-A 4 60 110 60 1.1 3000 3800 1550 15/250
90YY90-110V1550RPM-A 4 90 110 60 2 6000 5700 1550 25/250
